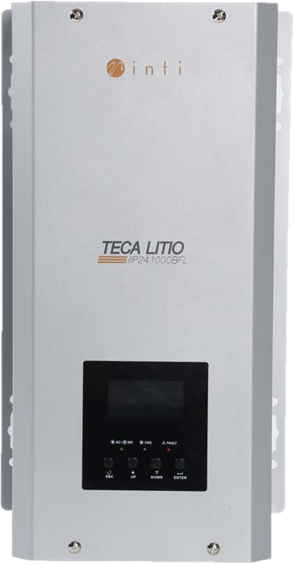

📍 TECA Lithium Inverter/Charger (Series IIP–241000BFL / IIP–242000BFL / IIP–243000BFL / IIP–484000BFL / IIP–485000BFL)

General Description (Translated):
The TECA Lithium Series inverter/charger from Inti is a pure sine wave low-frequency inverter that combines an automatic transfer switch, battery charger, and inverter in one unit. It is compatible with lead-acid or lithium batteries via RS485/CANbus communication. It can operate with grid priority or solar priority depending on installation needs.

This inverter includes advanced lithium charging software, programmable settings via LCD, automatic thermal protection, and a power-saving mode to preserve battery capacity during idle periods. It is designed for heavy-duty operation, with a built-in toroidal transformer and comprehensive protection systems.

✅ Key Features

• Pure sine wave output, heavy-duty design

• RS485 / CANbus communication (lithium battery integration)

• Programmable LCD settings (voltage/frequency, charging modes, thermal restart)

• Built-in toroidal transformer

• THD < 3%

• Protection against:

  • AC over/undervoltage

  • DC over/undervoltage

  • Short-circuit

  • Overload

  • Overtemperature

  • Reverse current

• IP21 protection rating

📊 Technical Specifications (Inverter/Charger)
